Kabby Flanges is a well-respected manufacturer and supplier of **Low Temperature Carbon Steel LF6 Flanges in Abuja, Nigeria**. They specialize in high-quality flange solutions that are specifically designed to excel in low-temperature and cryogenic settings. With a strong focus on engineering excellence and a commitment to global standards, Kabby Flanges ensures that their products are durable, strong, and resistant to corrosion. Backed by cutting-edge production technology and a talented team, the company serves a variety of sectors, including oil and gas, petrochemical, and power industries. Kabby Flanges is recognized for its reliability, precision, and customer-centric service, both in Nigeria and on the international stage.
The **Low Temperature Carbon Steel LF6 Flanges** from Kabby Flanges in Abuja, Nigeria, are crafted from a blend of carbon, manganese, nickel, chromium, and molybdenum, which together provide remarkable strength and resistance in sub-zero conditions. These flanges boast impressive mechanical properties, featuring a tensile strength ranging from 485 to 620 MPa, a yield strength of about 250 MPa, and exceptional impact toughness at -46°C. Their well-balanced composition enhances weldability, toughness, and corrosion resistance, making LF6 flanges perfect for challenging low-temperature applications that demand stability, ductility, and structural integrity in extreme environments.
| Material Specification Of : | ASTM A350 LF6 Flanges |
|---|---|
| South African Standard Flanges | SANSflanges And SABS flanges |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| Element | Composition |
|---|---|
| Carbon, maximum | 0.20 maximum |
| Manganese | 0.90 maximum |
| Phosphorus, maximum | 0.035 maximum |
| Sulfur, maximum | 0.040 maximum |
| Silicon [Note A] | 0.20–0.35 |
| Nickel | 3.3–3.7 |
| Chromium | 0.30 maximum [Note C] |
| Molybdenum | 0.12 maximum [Note C] |
| Copper | 0.40 maximum |
| Columbium | 0.02 maximum |
| Vanadium | 0.03 maximum |
| Grade/Class | Tensile Strength | Yield Strength, minimum | Elongation, minimum | Hardness, maximum | ||
| ksi | MPa | ksi | MPa | % | HBW | |
| LTCS LF6 CL1 | 66–91 | 455–630 | 52 | 360 | 22 | 197 |
| LTCS LF6 CL2 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |
| LTCS LF6 CL3 | 75–100 | 515–690 | 60 | 415 | 20 | 197 |

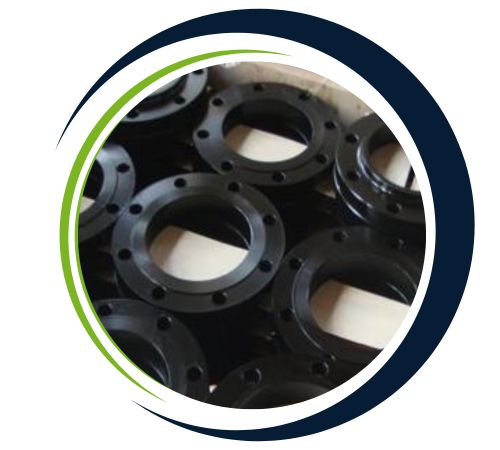

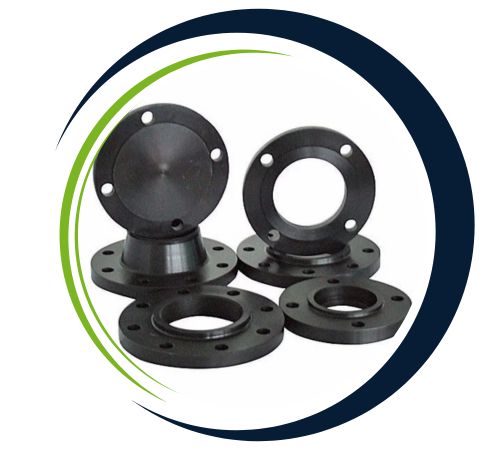

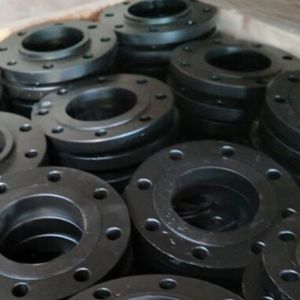

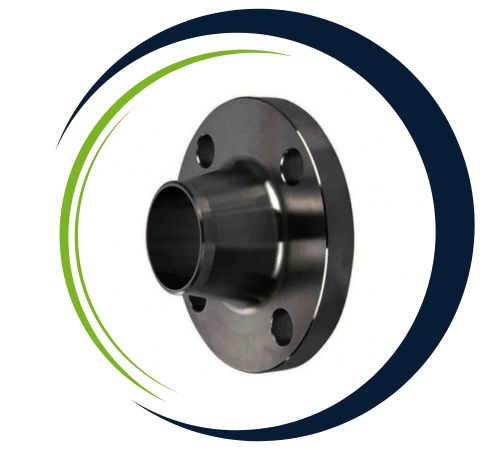

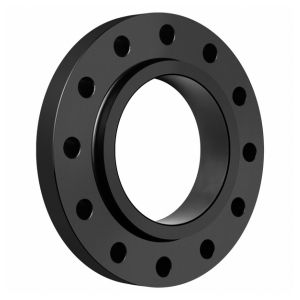

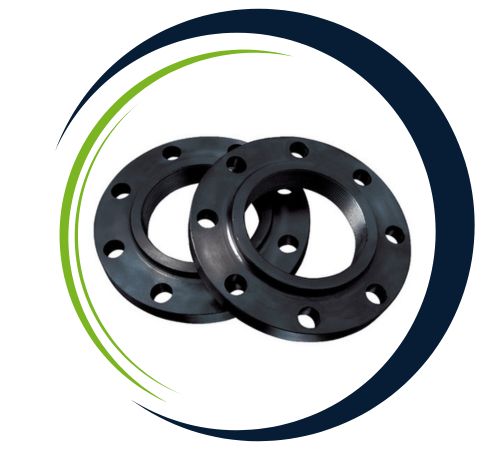

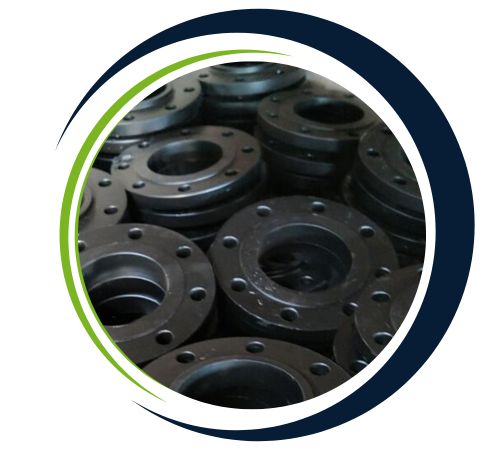

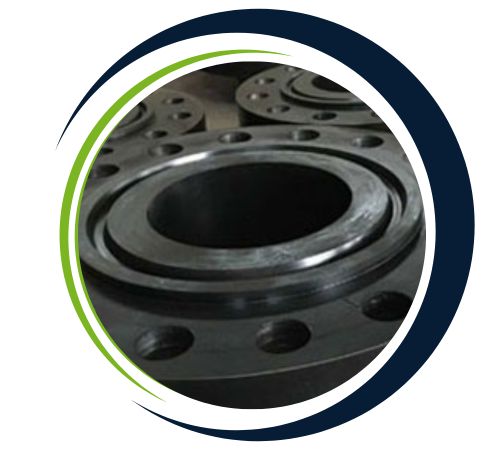

Kabby Flanges, a leading supplier in Abuja, Nigeria, offers an extensive selection of Low Temperature Carbon Steel LF6 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Kabby Flanges’ **Low Temperature Carbon Steel LF6 Flanges** are widely utilized in industries such as LNG processing, cryogenic storage, refrigeration systems, and offshore oil platforms. They are particularly suited for connecting pipelines, valves, and pressure vessels that transport low-temperature or liquefied gases. Thanks to their outstanding toughness and resistance to brittle fracture, LF6 flanges guarantee leak-proof performance and safety in demanding operational conditions. Kabby Flanges offers these flanges in a variety of types and sizes, ensuring dependable and efficient service for critical industrial applications around the globe.
Yes, we offer custom sizes for Low Temperature Carbon Steel LF6 Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
