Nickel Alloy 201 Flanges Manufacturer and Supplier In Abuja, Nigeria

Kabby Flanges, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch Nickel Alloy 201 Flanges that are crafted for outstanding performance in harsh, corrosive, and high-temperature settings. Renowned for their remarkable mechanical strength and chemical stability, these flanges are perfect for industries that demand dependable, long-lasting connections. At Kabby Flanges, each Nickel Alloy 201 Flange is meticulously engineered and produced to meet international standards, ensuring exceptional resistance to corrosion, oxidation, and caustic environments. These flanges find extensive use in sectors like chemical processing, power generation, marine, and petrochemical industries, particularly for critical piping applications.

Nickel Alloy DIN 2.4068 Flanges Supplier in Port Harcourt, Nickel Alloy 201 Flanges Kano, Nickel 201 Flanges Suppliers in Lagos, UNS N02201 Flanges Price in Nigeria, DIN 2.4068 Flanges Price List in Nigeria, Alloy 201 Flanges Stockist in Nigeria, UNS N02201 Flanges Price List in Kano

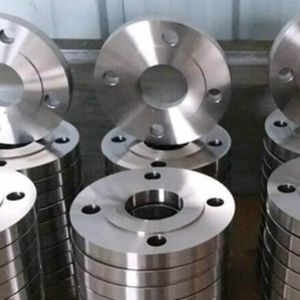

Nickel Alloy 201 Flanges

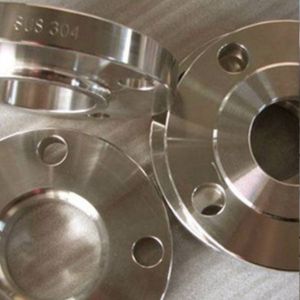

Nickel Alloy 201 Raised Face Flanges

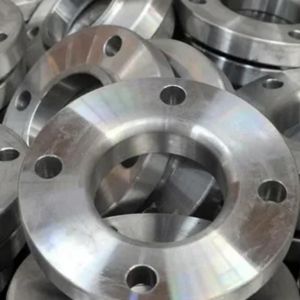

Nickel Alloy 201 RTJ Flange

The composition of Nickel Alloy 201 Flanges primarily includes pure nickel (99.6%) along with small amounts of iron, carbon, silicon, and copper. This alloy is known for its excellent resistance to alkalis, acids, and reducing chemicals. In terms of mechanical properties, it boasts a tensile strength of about 370 MPa and a yield strength of roughly 100 MPa, while maintaining impressive ductility and toughness. Its low carbon content significantly enhances resistance to graphitization, making it suitable for high-temperature operations and ensuring reliable performance even in challenging conditions.

UNS N02201 Flanges Weight Chart in Nigeria, Nickel Alloy 201 Flanges Supplier in Ibadan, DIN 2.4068 Flanges Stockists in Lagos, Alloy 201 Flanges Dealer in Port Harcourt, UNS N02201 Flanges Price in Kano, Nickel Alloy 201 Flanges Weight Chart, Nickel DIN 2.4068 Flanges Weight Chart

Nickel Alloy 201 Flanges Specification

Grade	Nickel Alloy 201 / UNS N02201
Standard	ASTM B564, ASME SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2″ – 48″ (15NB – 1201NB)
Class / Pressure Rating	150 Class, 300 Class, 201 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.

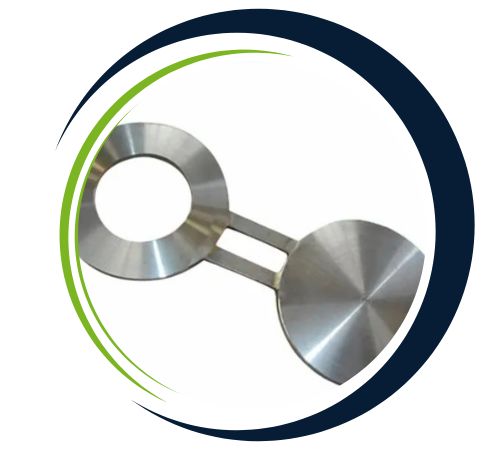

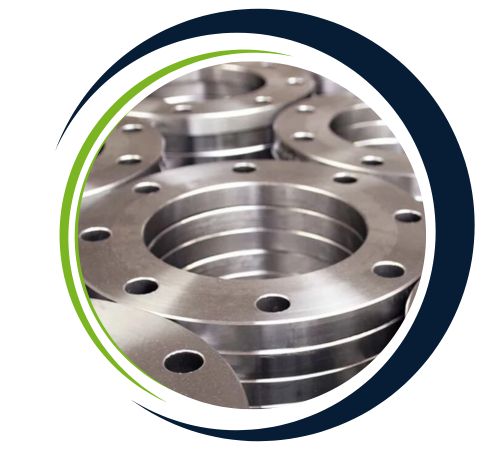

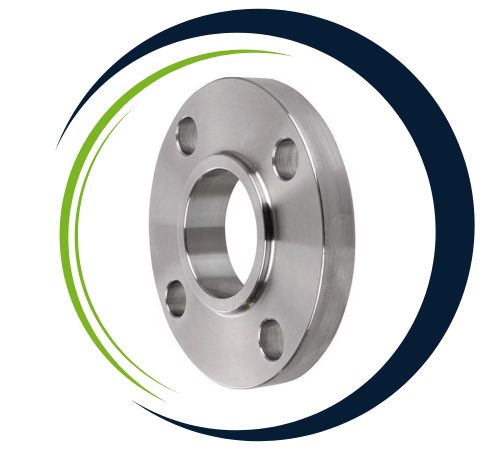

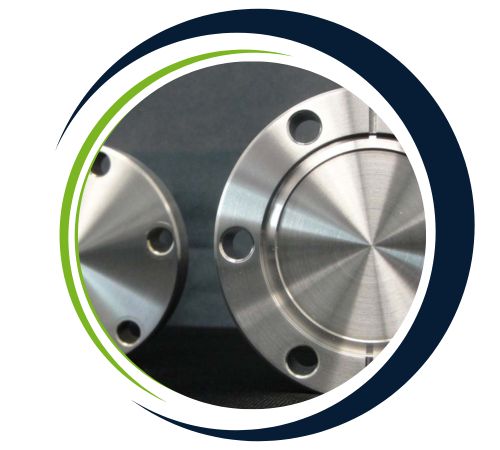

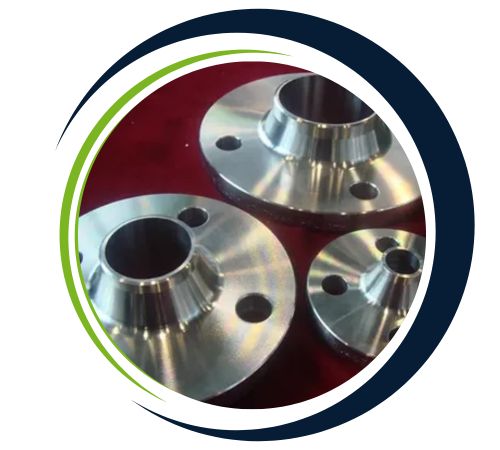

Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Nickel Alloy 201 Flanges Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Mg	Ti	S
Nickel 201	99.0 min	0.4 max	0.02 max	0.35 max	0.2 max	0.25 max	0.15 max	0.1 max	0.01 max

Nickel Alloy 201 Flanges Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades of Nickel Alloy 201 Flanges

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Nickel 201	2.4068	N02201	НП-2	–	NW 2201	NA 12	NLC-Ni 99

Largest Nickel Alloy 201 Flanges Supplier in Abuja, Nigeria

Kabby Flanges, a leading supplier in Abuja, Nigeria, offers an extensive selection of Nickel Alloy 201 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Nickel Alloy 201 Flanges are widely utilized in industries where high purity and corrosion resistance are essential. They are particularly well-suited for chemical processing equipment, caustic soda production, heat exchangers, marine hardware, and power generation systems. Their ability to endure severe alkaline environments makes them ideal for applications involving caustic solutions and fluorine gas handling. These flanges provide secure connections in high-stress and corrosive settings, delivering durability, safety, and efficiency for long-term industrial use across various sectors.

ASTM B564 Nickel Alloy Flanges Supplier in Abuja, Nickel Alloy 201 Flanges Exporters in Ibadan, UNS N02201 Flanges Manufacturers in Lagos, DIN 2.4068 Flanges Price List in Nigeria, UNS N02201 Flanges Dealer in Lagos, Alloy 201 Flanges Manufacturers in Port Harcourt, Nickel Alloy 201 Flanges Suppliers in Ibadan, DIN 2.4068 Flanges Dealers in Abuja

Types of Nickel Alloy 201 Flanges

Dimensions of Nickel Alloy 201 Flanges

Size in Inch	Size in mm	Outer Diameter	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	Bore	RF Diameter	RF Height	PCD	Weld Face
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	Refer Note	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6

Size of NICKEL ALLOY 201 Flanges

Normal Sizes In inch	Dimension	Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Are Custom Sizes Available for Nickel Alloy 201 Flanges?

Yes, we offer custom sizes for Nickel Alloy 201 Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
