ANSI B16.5 Class 900 Flanges Manufacturer and Supplier In Abuja, Nigeria

Kabby Flanges is a top-notch manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality ANSI B16.5 Class 900 Flanges. These flanges are expertly crafted to create robust, leak-proof connections in high-pressure piping systems, fully adhering to the ANSI B16.5 standards for dimensions and tolerances. At Kabby Flanges, we utilize cutting-edge manufacturing techniques, precision machining, and rigorous quality control to ensure that our ANSI B16.5 Class 900 Flanges consistently deliver reliable performance in even the most demanding industrial settings. You’ll find them widely used in sectors like oil and gas, petrochemical, chemical processing, and power generation, where durability, strength, and safety are absolutely crucial.

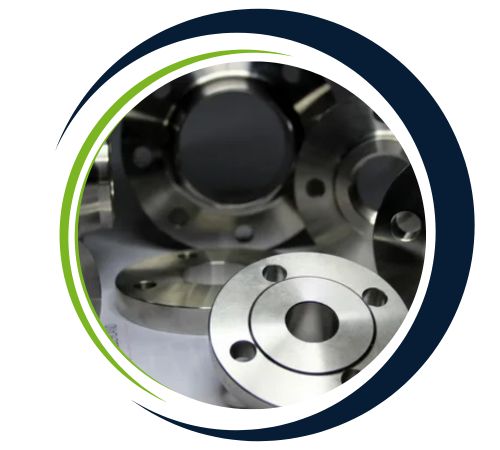

Raised Face Class 900 Flanges Nigeria, 900 LBS Flange United kingdom, ANSI B16.5 Class 900 Flange Abuja, ANSI B16.5 Class 900 Forged Flanges Lagos, ANSI B16.5 900 LBS Pipe Flange Ibadan, 900 LB Plate Flange Port Harcourt, AWWA Class 900 Flanges Manufacturer in Kano.

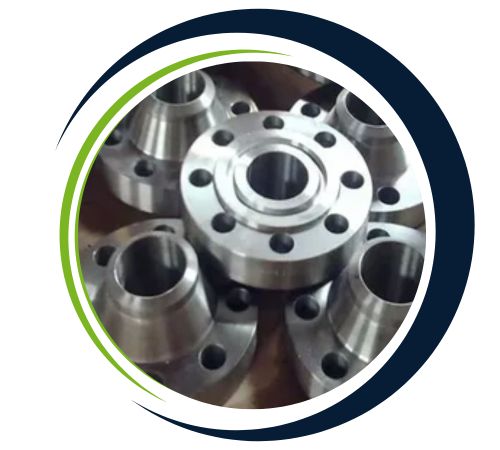

900 LBS Flanges

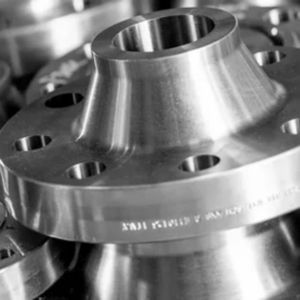

Raised Face Class 900 Flanges

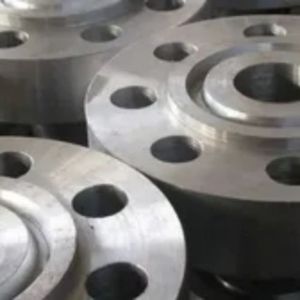

ANSI B16.5 Class 900 Flange

Our ANSI B16.5 Class 900 Flanges are made from top-quality carbon steel, stainless steel, or alloy steel, boasting impressive mechanical properties such as high tensile and yield strength, hardness, and toughness. They’re engineered to endure high pressures, temperature swings, and moderate corrosive environments, ensuring secure, leak-proof connections for pipelines, valves, pumps, and pressure vessels. These flanges are designed for long-lasting performance and reliability in critical industrial applications.

900 LBS Flanges Stockist in Nigeria, 900 LBS Flanges Manufacturer in United kingdom, 900 LBS Flanges Stockist in Abuja, 900 LBS Flanges Supplier in Lagos, 900 LBS Flanges Supplier in Ibadan, 900 LBS Flanges Manufacturer in Port Harcourt, ANSI B16.5 Class 900 Flange Kano.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

ANSI B16.5 Class 900 Flanges Specification

Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards	B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges.
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Threaded / Forged / Plate /Screwed
Flange supporting material	Ring Joint, Gasket, Flange Bolts
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most Common Types	Slip-On Ring Flange (SORF), Class 900 Weld Neck Ring Flange (WNRF), Class 900 Threaded Ring Flange, Class 900 Socket Weld Ring Flange (SWRF), Class 900 Blind Ring Flange (BLRF), Class 900 Ring Type Joint Flange (RTJF), Class 900 Lap Joint Ring Flange (LJRF), Class 900
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 900 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Specialized Manufacturer of	Class 900 Blind Flanges Class 900 Large Diameter Flange Class 900 Table Flanges Class 900 Sorf Flange Class 900 Socketweld Flanges Class 900 Threaded Flanges Class 900 Weld Neck Flanges Class 900 Slip-On Flanges Class 900 Loose Flanges Class 900 AS 4087 Water Flanges Class 900 Lap Joint Flanges Class 900 Plate Flanges Class 900 Orifice Flanges
Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 German (DIN) American standard (ANSI) Any other specilised flanges British standard (BS) The other standard : AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

ANSI B16.5 Class 900 Flanges Dimensions

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	95	14.3	52.4	22.2	22.2	66.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	19	43
1	124	17.5	61.9	27.0	27.0	89.0	4	19	51
1-1/4	133	20.7	66.7	28.6	28.6	98.5	4	19	64
1-1/2	156	22.3	69.8	31.8	31.8	114.5	4	22	73
2	165	25.4	73.0	36.5	36.5	127.0	8	19	92
2-1/2	190	28.6	79.4	41.3	41.3	149.0	8	22	105
3	210	31.8	82.6	46.0	46.0	168.0	8	22	127
3-1/2	229	35.0	85.7	49.2	49.2	184.0	8	25	140
4	273	38.1	101.6	54.0	54.0	216.0	8	25	157
5	330	44.5	114.3	60.3	60.3	266.5	8	29	186
6	356	47.7	117.5	66.7	66.7	292.0	12	29	216
8	419	55.6	133.4	76.2	76.2	349.0	12	32	270
10	508	63.5	152.4	85.7	115.1	432.0	16	85	324
12	559	66.7	155.6	92.1	111.1	489.0	20	35	381
14	603	69.9	165.1	93.7	117.5	527.0	20	38	413
16	686	76.2	177.8	106.4	127.0	603.0	20	41	470
18	743	82.6	184.2	117.6	139.7	654.0	20	45	533
20	813	88.9	190.5	127.0	165.1	724.0	24	45	584
24	940	101.6	203.2	139.7	184.2	838.0	24	51	692

ANSI B16.5 Class 900 flanges are applied to high-pressure piping systems in industries like the oil and gas, petrochemical, power generation, and marine engineering sectors. The flanges can support pressures of up to 2220 psi at 100°F and are thus suitable for harsh environments. Common uses include joining valves, pumps, and equipment in steam, gas, and corrosive liquid pipelines. Their robust design allows for leak-free connections and system integrity upon exposure to extreme pressure and temperature conditions. Subject to various types such as weld neck, blind, and slip-on, they ensure reliability, safety, and accessibility when servicing critical infrastructures and business undertakings.

Raised Face Class 900 Flanges Nigeria, 900 LBS Flange United kingdom, ANSI B16.5 Class 900 Flange Abuja, ANSI B16.5 Class 900 Forged Flanges Lagos, ANSI B16.5 900 LBS Pipe Flange Ibadan, 900 LB Plate Flange Port Harcourt, AWWA Class 900 Flanges Manufacturer in Kano.

Types of ANSI B16.5 Class 900 Flanges

Are Custom Sizes Available for ANSI B16.5 Class 900 Flanges?

Yes, we offer custom sizes for ANSI B16.5 Class 900 Flanges to meet specific project needs. Our team at Kabby Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@kabbyflanges.com.

Material Testing

You’ll often find ANSI B16.5 Class 900 Flanges in high-pressure pipelines, refineries, petrochemical plants, and power generation facilities. They provide strong, durable, and efficient connections, ensuring operational safety, system integrity, and dependable performance across various demanding industrial sectors.
